Ăng Ten Hf Lf Vlf Mini Rowaki1 Chuyên Dụng

Giới thiệu Ăng Ten Hf Lf Vlf Mini Rowaki1 Chuyên Dụng

Description:
When receiving traditional antennas, you can find weak signals that are submerged by noise

Can be easily installed on balconies, rooftops, and other places, featuring compact size.

The receiving antenna is compact and can be easily installed on balcony, roof and other places

By rotating the antenna, the antenna's dummy point is aligned with the interference signal

Excellent directivity helps reduce noise and improve SNR
Specification:
Material:Steel

Frequency range: 10 kHz - 30 MHz

Power: 12 - 15 volts at 150 mA

Second order output intercept point: > + 70 dBm

Third order output intercept point: > + 30 dBm

Maximum output power: in excess of - 15 dBm

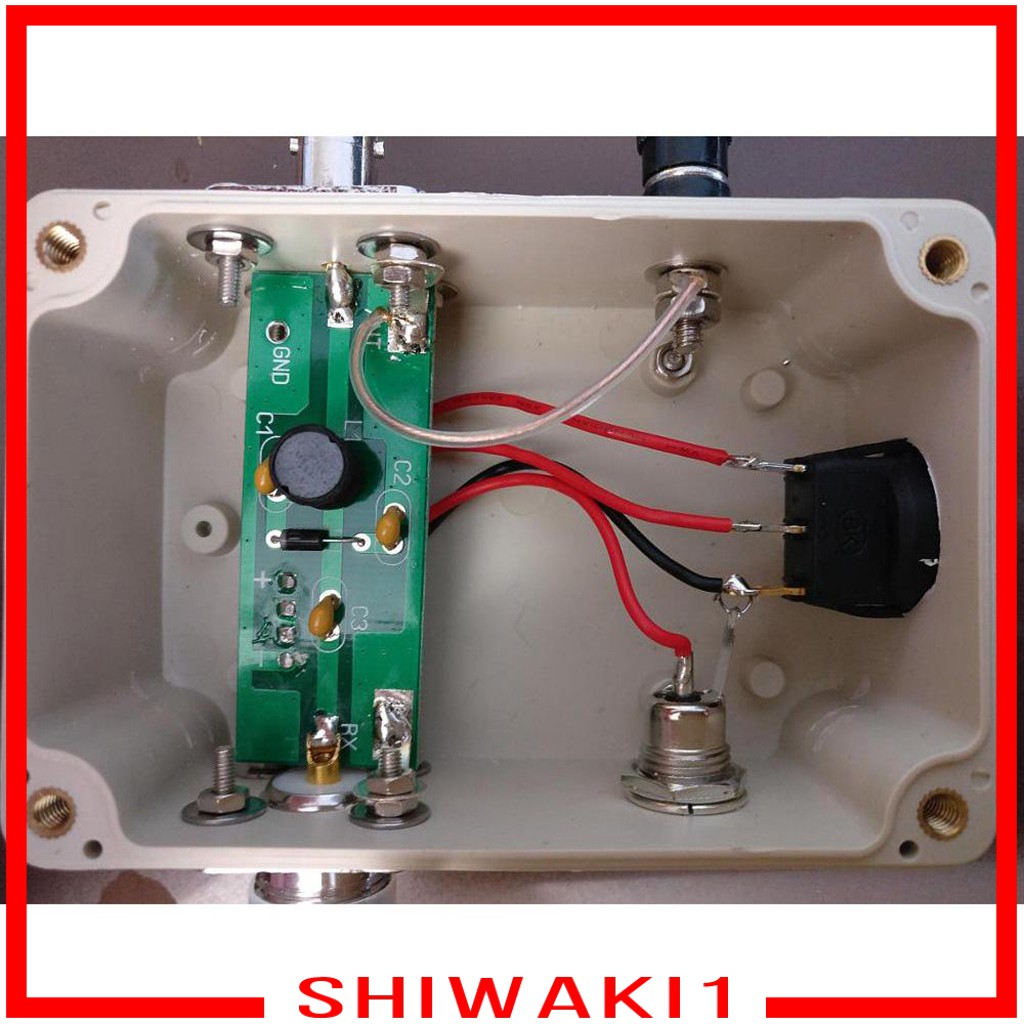

PCB Size: Length (mm): 155 x 27

Connector: BNC

Feed line: 50 - 100 ohm coaxial cable up to 100 meter long
Size Chart:
Size:Approx.80x60x50mm/3.1x2.4x1.97inch

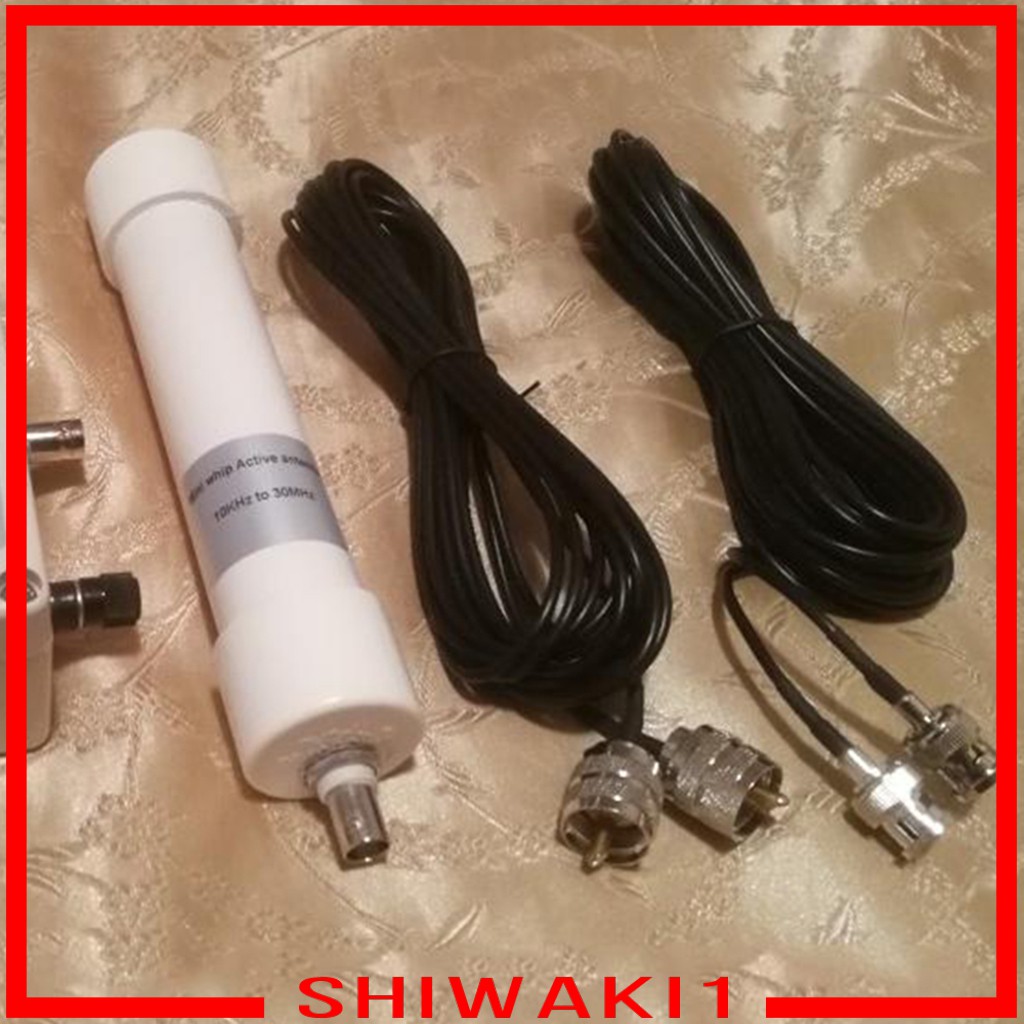

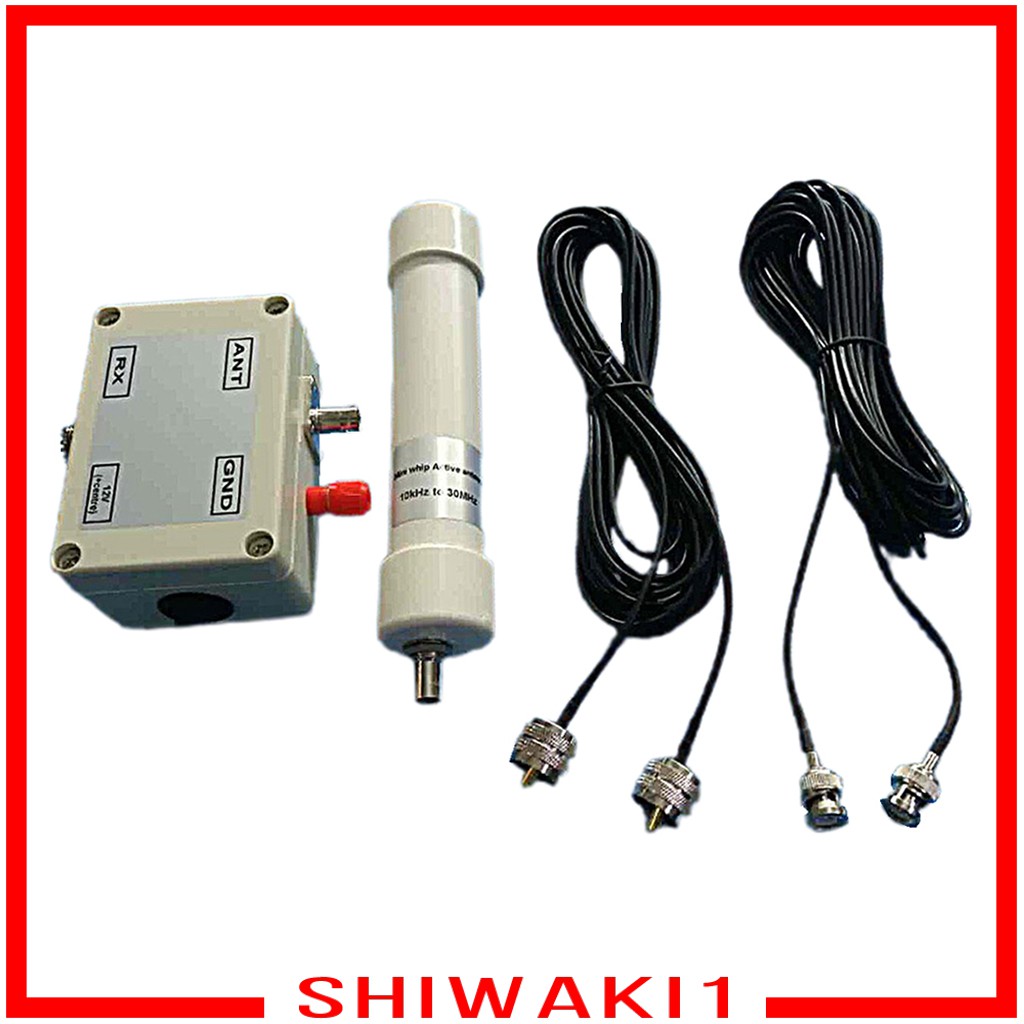

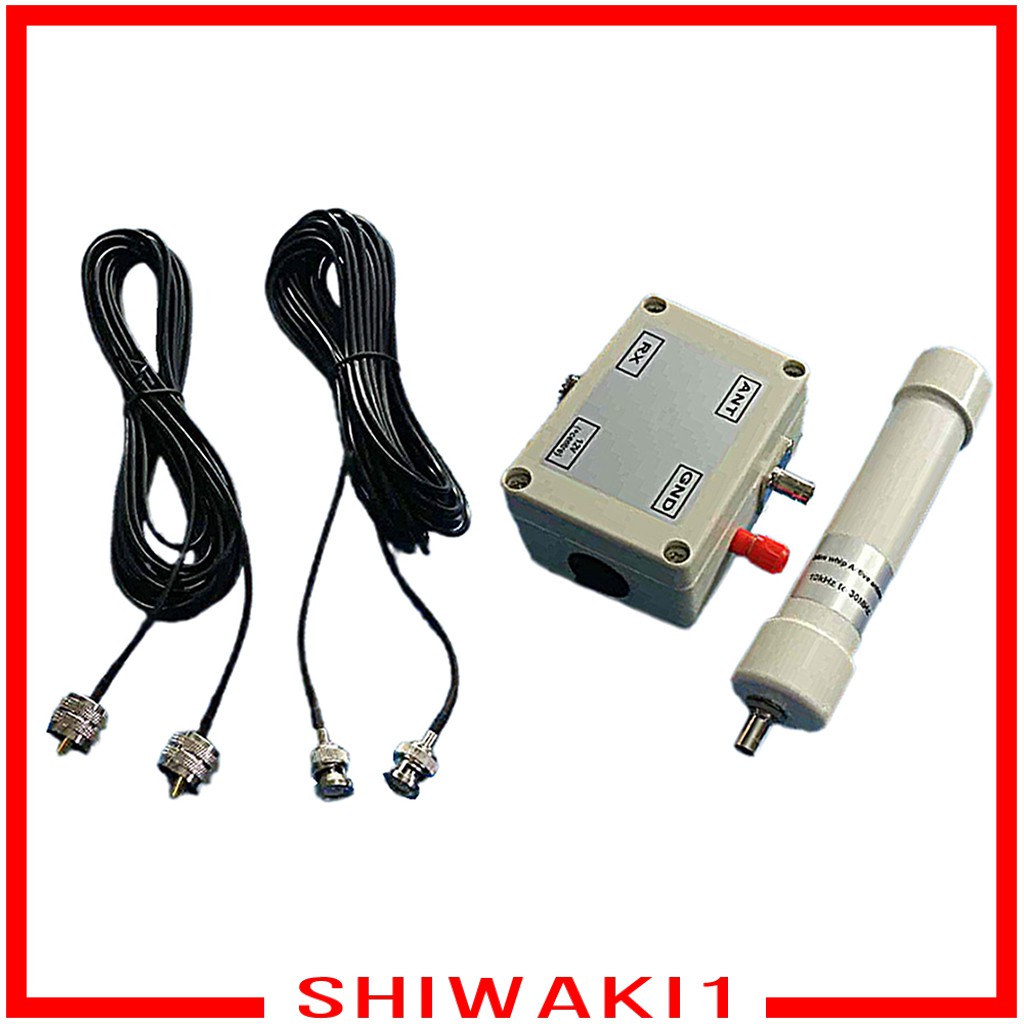

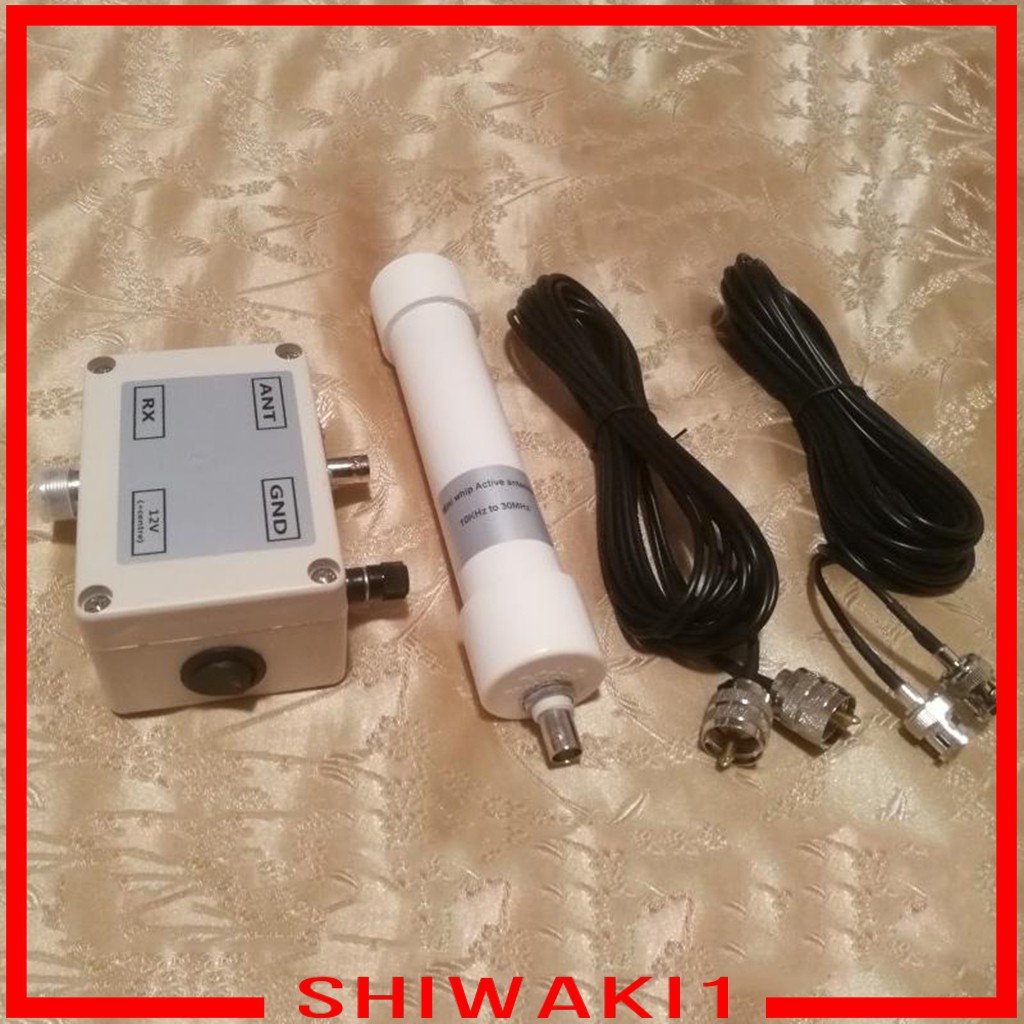

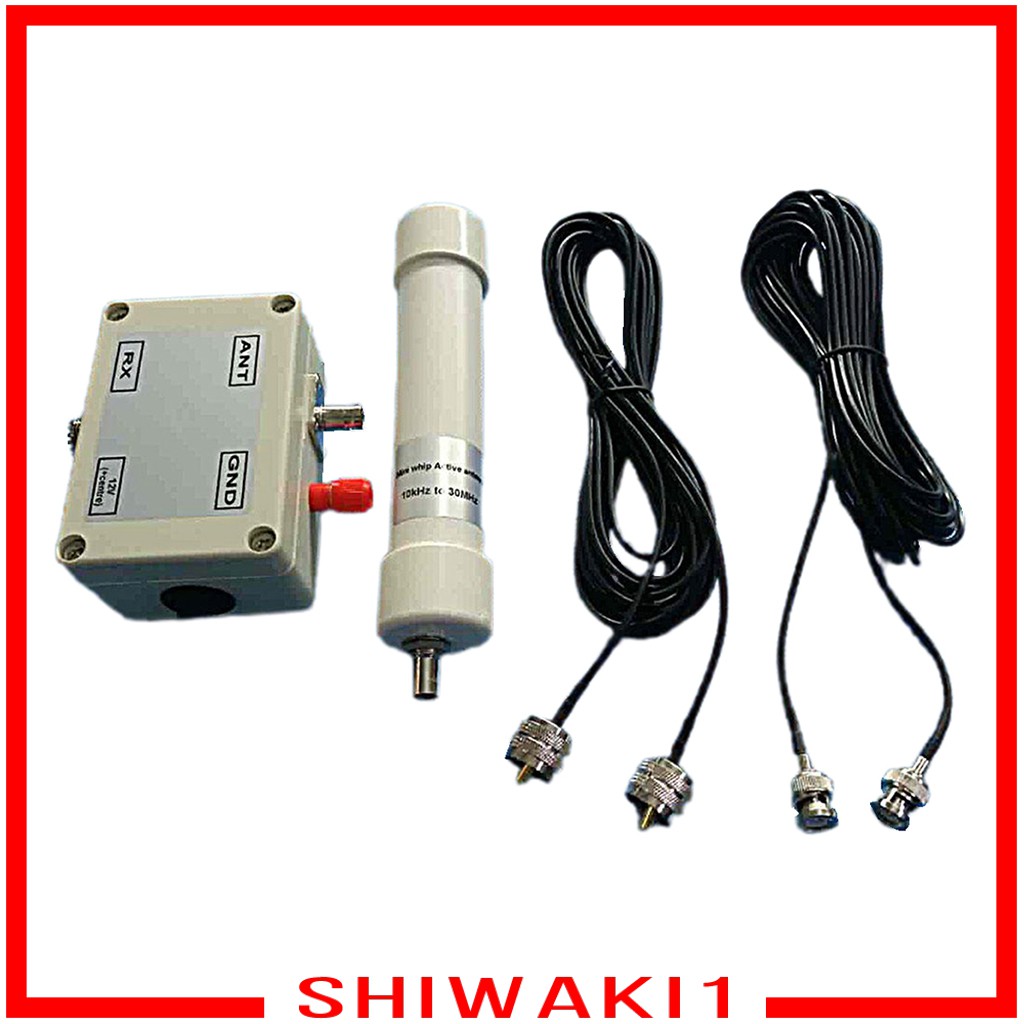

Package Includes:
1 Set Active Antenna
Note:Due to the difference between different monitors, the picture may not reflect the actual color of the item.
Due to manual measurement, there may be 1-2cm error in size.

Hình ảnh sản phẩm
