Cáp chuyển giao tiếp sa3004 cổng 6G PCI-E sang SATA3.0

Giới thiệu Cáp chuyển giao tiếp sa3004 cổng 6G PCI-E sang SATA3.0

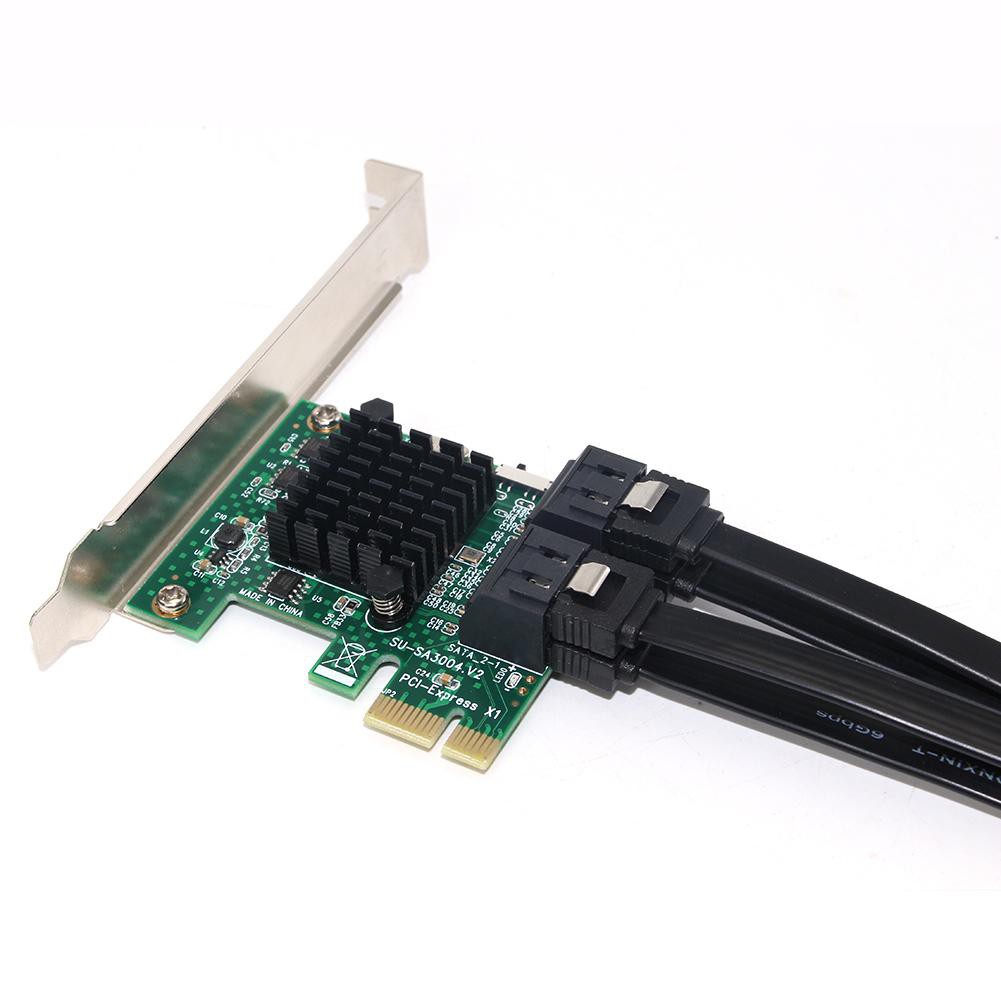

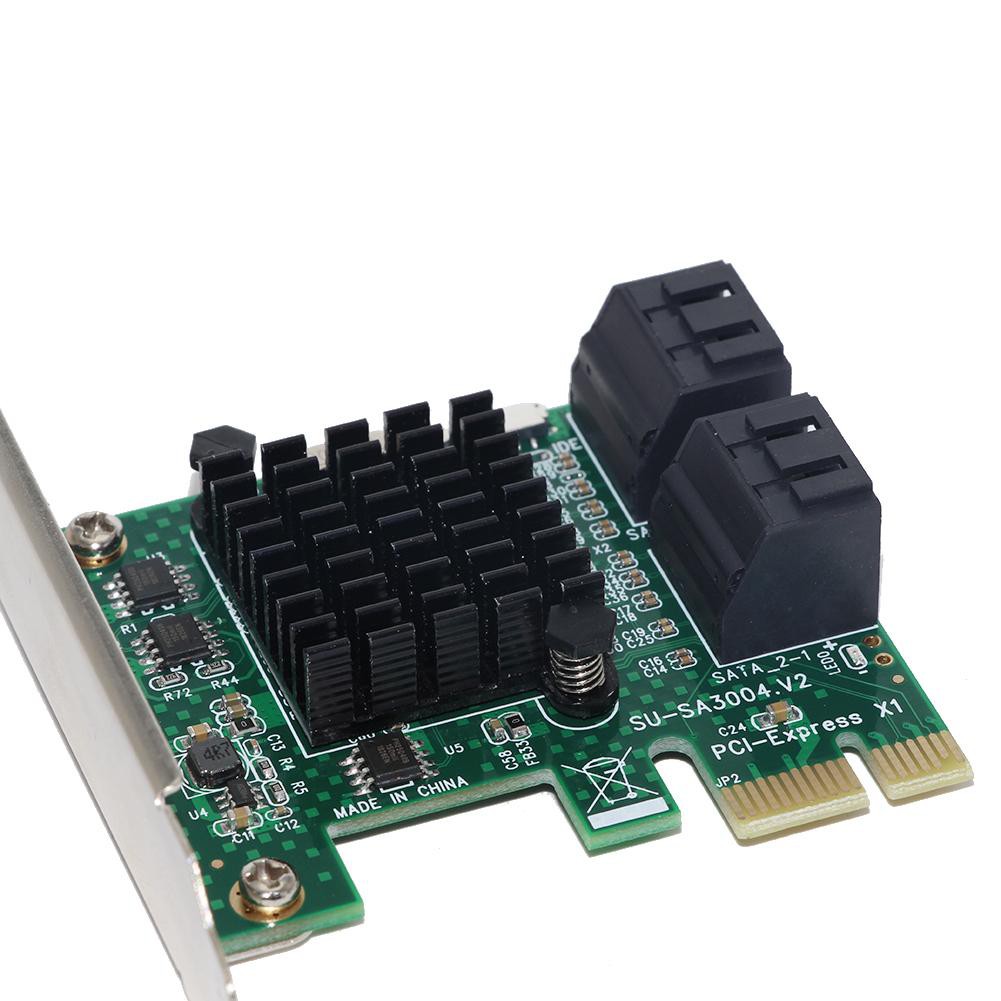

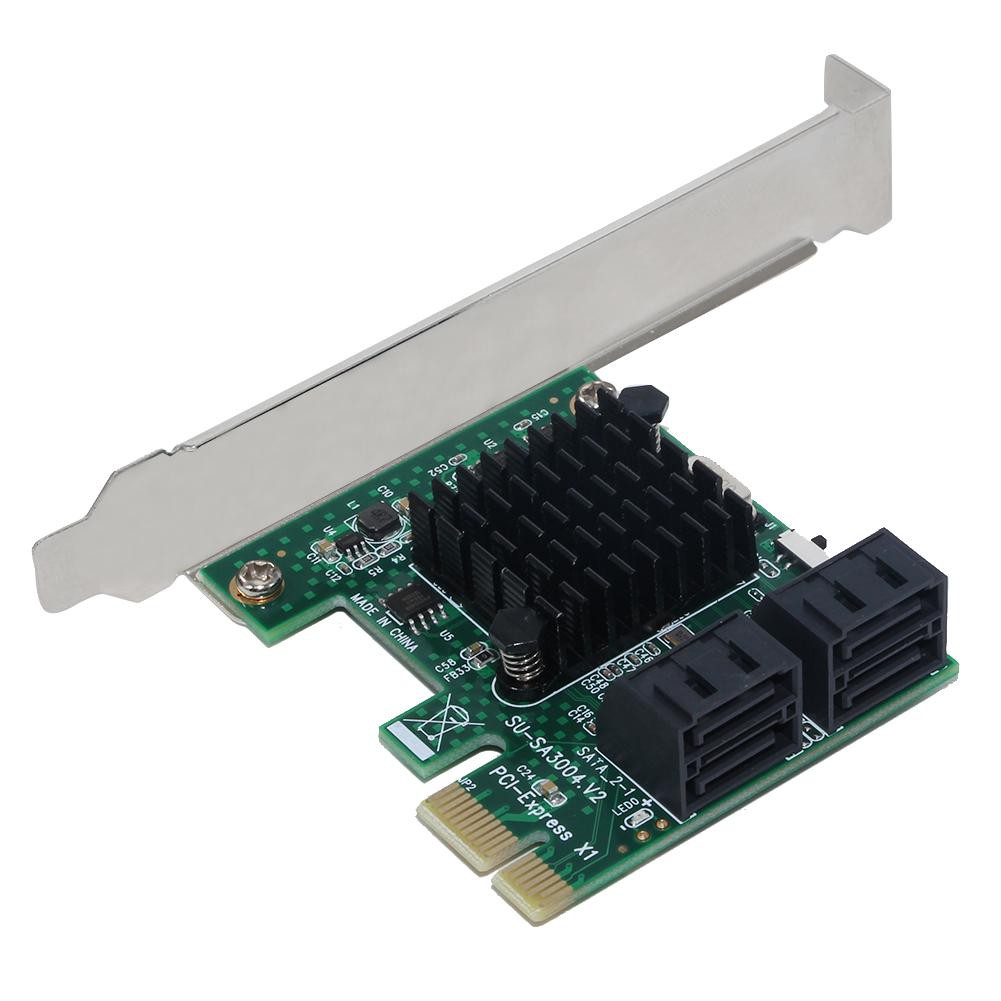

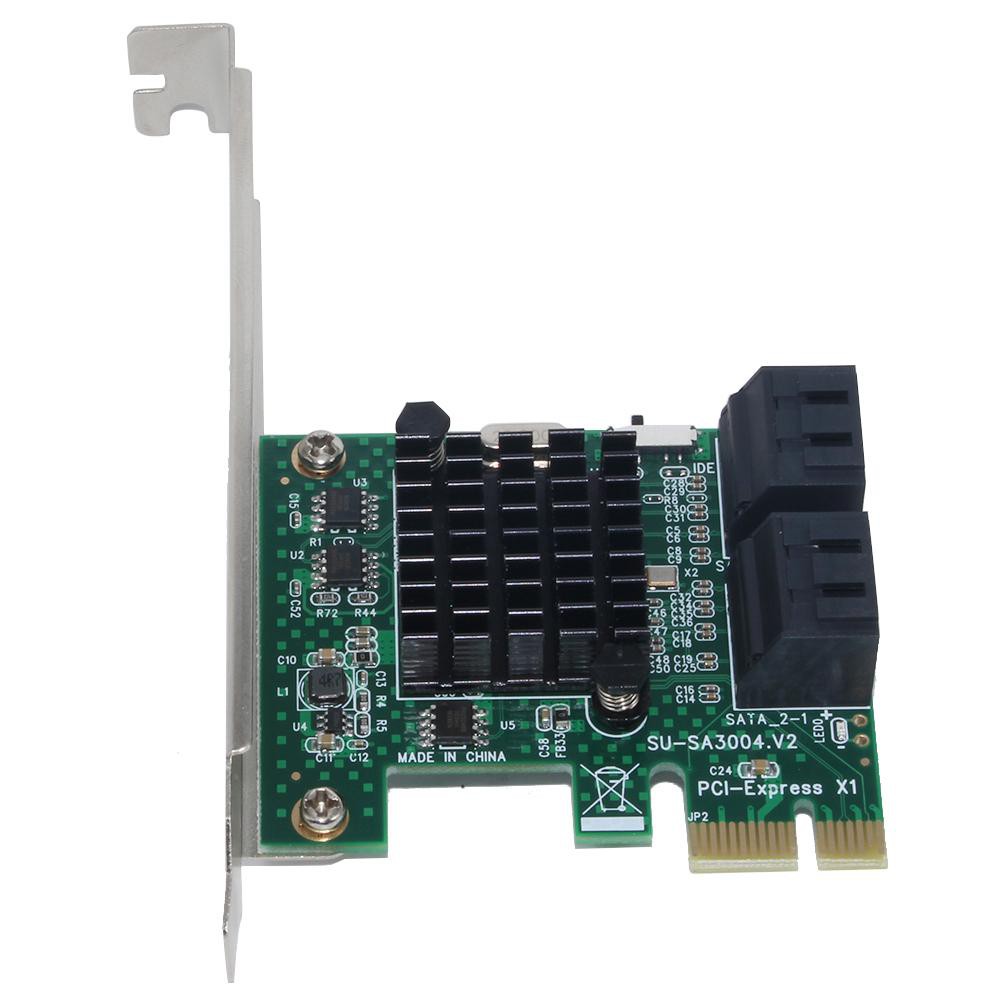

SSU SA3004 4 Port 6G PCI-E to SATA3.0 Expansion Miner Adapter Card SSD IPFS Mining Controller Card
Feature:

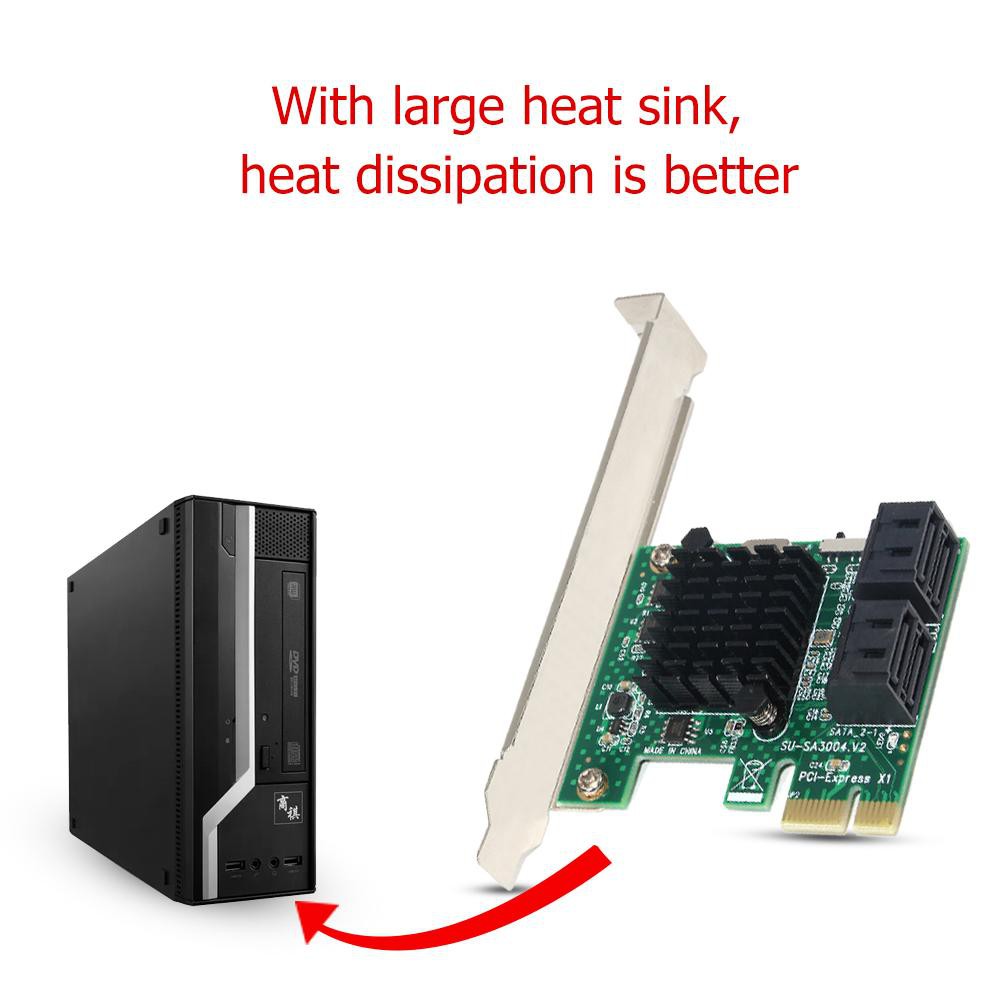

1. With large heat sink, heat dissipation is better.
2. The design of the rear four ports is more convenient to wire.
3. Rear four port design, suitable for all kinds of chassis.
4. The design of the tail edge, and the probability of bloing the card player is smaller.

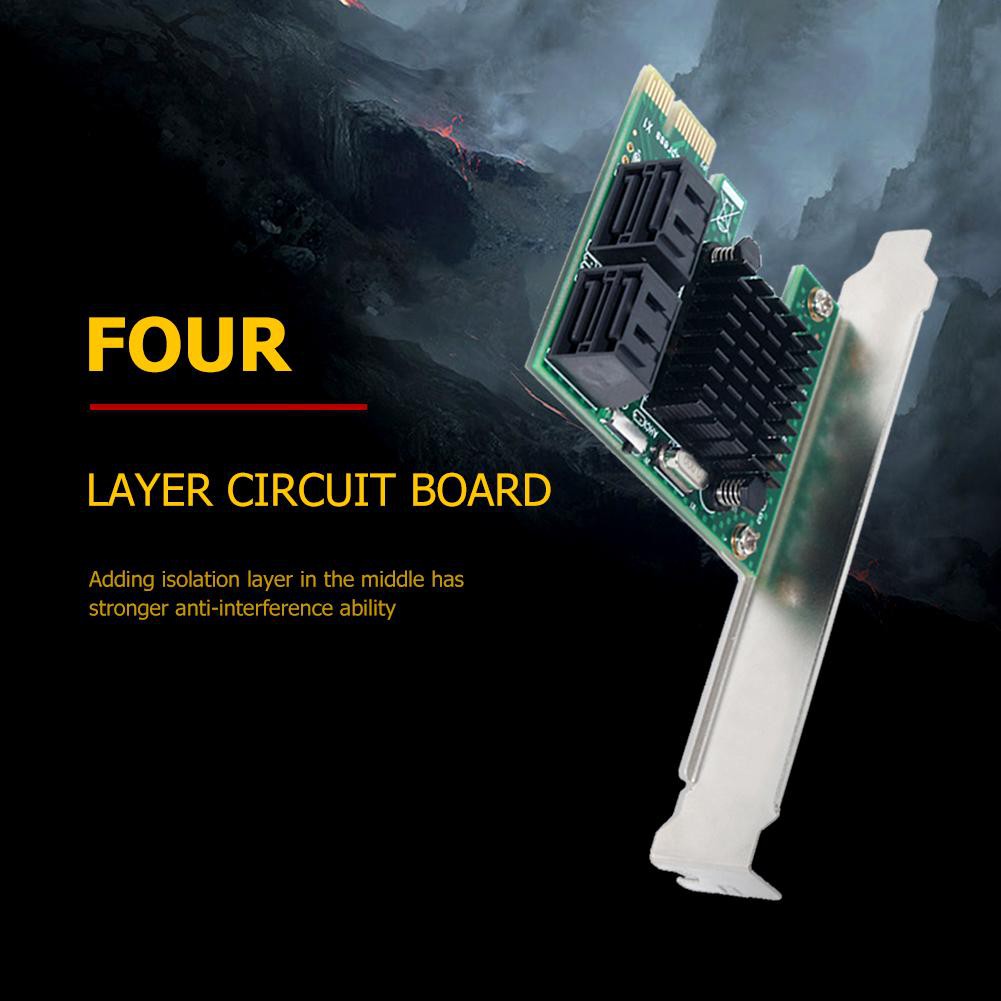

5. The four layer circuit board, with the addition of isolation layer in the middle, has stronger anti-interference capability.
6. Original mode selection, AHCL, IDE, data disk, three modes are free to choose.

The three mode can be selected by pulling the switch:
1. Hard disk boot system in AHQ mode.
2. Data disk mode, hard disk does not participate in boot (at the same time can turn off self-test interface).
3. Hard disk boot system in IDE mode.

Specification:
Brand: SSU
Model: SA3004
Bus interface: PCI-EX1 (compatible with X4, X8, X16/ graphics card interface)
Number of interfaces: SATA3.0 interface X4
Product size: 120mm (baffle) *65mm*56mm/4.72*2.55*2.2''
Product weight: 70g
System support: support for Windows XP/2003/ Vista/win7/in8/win10 (32/64bit) operating system.

Note:
Please allow 1-3mm differs due to manual measurement.
Due to the different display and different light, the picture may not show the actual color of the item. Thanks for your understanding.
